Vectris

The revolutionary FRC fibre-reinforced material

Vibrant aesthetics
  • Tooth-coloured, translucent crown and bridge frameworks
  • Anterior and Posterior Bridges
  • Posterior Crowns
True-to-nature behaviour
  • The structure and the technical parameters of the material correspond with those of dentin
  • High stability
  • Optimum bond as well as biomechanical coordination of teeth, Vectris frameworks, and Targis veneers
  • Easy adhesive cementation
High degree of biofunctionality

Cementation
  • Vectris restorations are adhesively placed
  • NEW - Conventionally prepared Vectris restorations may be conventionally cemented with ProTec Cem from Vivadent
  • (In these cases, corresponding Instructions for Use have to be observed.)

Fact 1: Advanced Framework Material

Vectris is unmatched in the dental world. For the first time ever, it is possible to fabricate metal-free, translucent frameworks for anterior and posterior bridges, as well as for crowns with this unique fibre-reinforced material.

Fact 2: Proven fibre-reinforced technology

The FRC (Fibre-Reinforced Composite) material is composed of several of fibre wafers, as well as uniaxially orientated fibre bundles. In fact, fibre-reinforced technology is already being used in the aeronautical and ship building industries. In situations where permanent loads are applied and light weight is required, this material assures excellent stability due to outstanding distribution of strain as well as elasticity similar to that of dentin.
Fibre Reinforced Technology

Fact 3: Outstanding Translucency

The composition and shading of Vectris is optimally coordinated with the natural tooth and the Targis veneering material. These features assure lifelike aesthetic restorations.

Fact 4: Modulus of elasticity similar to that of dentin

In contrast to metal, Vectris demonstrates elasticity similar to that of Dentin. This characteristic has the favourable effect on distribution of strain within the material as well as on the stability of the material.

Dentin: 16 - 18,000 N/mm2
Vectris: 11,300 N/mm2
Metal: 200,000 N/mm2
Modulus of elasticity

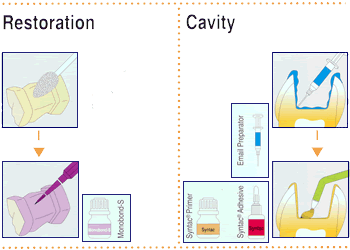

Accurate Adhesive Cementation

  • Try in Targis or Targis-Vectris restoration
  • Isolate
  • Clean and dry cavity and restoration
  • !Carefully follow the manufacturer's instructions of the adhesive system used
Restoration
Cavity
Cavity
  • Use Conventional or ultrasound-supported
    adhesive cementation
  • Remove Excess
  • Polymerize
  • Finish
  • Polish
  • Apply Flouride
  • Check Occlusion
